Wilwood Disc Brakes | Front | Drag Kits

Wilwood Disc Brakes | Front | Drag Kits

FDL [Forged dynalite] Front Drag kits are drag racing’s most popular front brake kits. FDL kits are available for the popular muscle car spindles and select aftermarket front struts used on four-wheel disc cars weighing up to 2,800 pounds, or rear drum brake equipped cars weighing up to 2,400 pounds. Forged billet FDL four piston calipers mount directly to the spindle with a bolt-on bracket. Forged billet, five lug hubs with direct mount steel rotors combine to provide an average weight savings of over 30 pounds compared to stock drum or disc brakes. Kits include all new hardware, wheel bearings, seals and extra length lug studs.

We also sell rear kits and any hardware listed in their catalog or web site. Visit their web site for info and part numbers (www.Wilwood.com), then call us with a part # for a competitive price quote.

Dutchman Lowest Price Guarantee; We will beat any “provable” advertised price on any Wilwood front or rear disc brake kit.

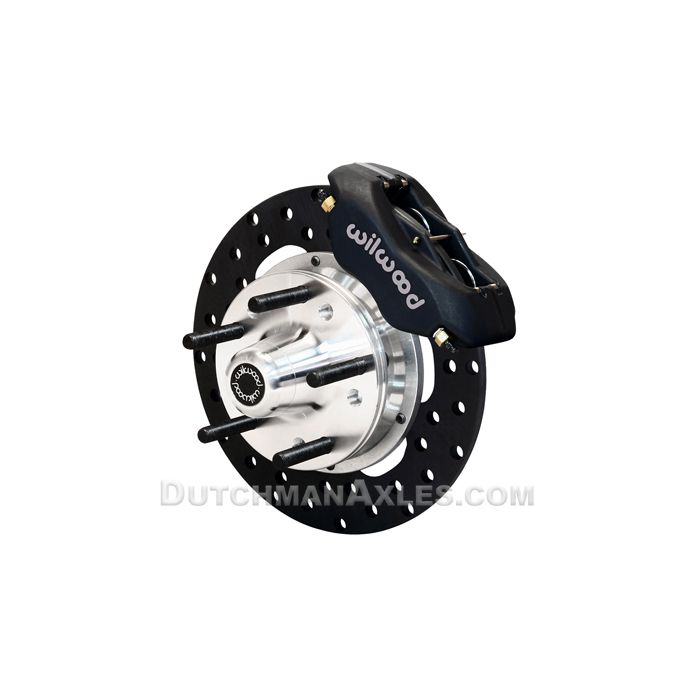

Actual product may appear different than picture.

Details: [Most kits, see page and part number for actual kit details]
-Rotors: Crossdrilled 10.750" od x .350 wide
-Forged aluminum hubs
-Calipers: 4 piston dynalites [New gray ano color]
-Hub Bolt Pattern(s): 5 on 4 1/2", 4 3/4"

Part numbers & Applications:
#140-1015, Art Morrison strut. >Click Here< for details
#140-4258, Art Morrison strut [vented rotor, not solid]. >Click Here< for details
#140-4399, Chassis engineering strut, [2 piston caliper, 10” x .320 wide rotor]. >Click Here< for details
#140-2711, Chrysler, Dodge, Plymouth, Barracuda, GTX, Roadrunner, Satellite, Fury, Challenger, charger, Coronet, Super Bee, 62-72 B-body, 70-72 E-body. >Click Here< for details
#140-2712, Chrysler, Dodge, Plymouth, Dart, Demon, Lancer, Barracuda, Duster, Valiant, 62-72 B & E body, 9” drum brake spindles. >Click Here< for details
#140-2713, Chrysler, Dodge, Plymouth , Dart, Demon,  Barracuda, Duster, Valiant, 65-72 A body, 10” drum brake spindles. >Click Here< for details
#140-2719, Chrysler, Dodge, Plymouth, 73-80, A, B, E, & F body cars, disc spindles. >Click Here< for details
#140-1501, Early Ford, 37-48, factory drum spindle. >Click Here< for details
#140-1013, Ford, Mustang ll, Pinto, 71-80, drum or disc spindle. >Click Here< for details
#140-4307, Ford, Mustang, 65-69, drum or disc spindles. >Click Here< for details
#140-4503, Ford, Mustang, 87-93, drum or disc spindles. >Click Here< for details
#140-11930, Ford, Mustang, Fairlane, Falcon, Maverick, Ranchero, Torino, Cougar, Comet, Cyclone, Montego, 70-73, [11.75” dia. rotor]. >Click Here< for details
#140-1017, GM, Chevy, Camaro, Nova, Chevelle, and other GM vehicles; Buick, Oldsmobile, Pontiac, 67-72. >Click Here< for details
#140-1019, GM, Chevy, Camaro, 70-78, disc spindle. >Click Here< for details
#140-1033, GM, Chevy, G Body, 79-87, disc spindle, 10.75 rotor od. >Click Here< for details
#140-1035, GM, Chevy, Camaro, Firebird, 82-92. >Click Here< for details
#140-8175, GM, Chevy, Camaro, 79-81, disc spindles. >Click Here< for details
