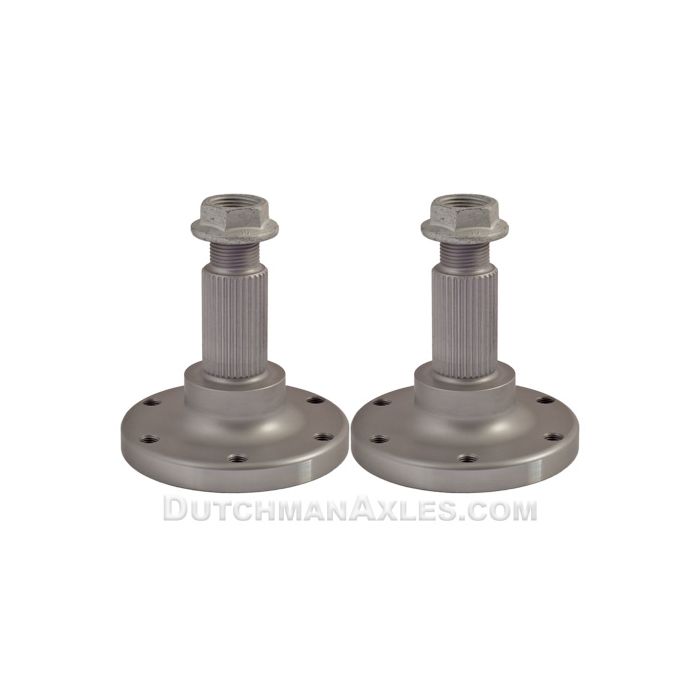

Outer Stub Axles | C7 Corvette to 930 CV Conversion

These high performance outer stub axles complement our Heavy Duty Ford 9 inch IRS housing and axles. They replace the wimpy factory Corvette C7 tripod style CV joint and utilize the extra heavy duty Porsche 930 [size 15] CV joint like our 9 inch Independent center. They are CNC machined from forged alloy 4340 Chromoly material and are double heat treated to the same specs as our front and double spline floater shafts. If you’re planning a custom street or track IRS rear end, be sure to include Dutchman high performance components!

Priced as a pair
Doesn’t include the spindle or unit bearing [wheel hub]
Custom made in the USA

Features:
-33 spline [Large 1.410 diameter]
-Designed for the 930 - Size 15 CV Joint
-Fits the factory or any aftermarket C7 unit bearing
-Includes the flanged locking nut

Available options:
-CV joint, boot, & shoulder bolt kits
-C7 unit bearing [AKA hub flange or wheel hub assembly]
