Bundle | Ford 9 inch Axles & 11inch Wilwood Rear Disc Kit | 140-11389

Dutchman Custom 9 inch Ford “Street, Track, and Offroad” Alloy Axles | 28 – 40 spline

Made in the USA (right here in Meridian Idaho)
Actual products may appear different than the pics.

Axle Features and Options:
-Forged alloy 1541-H material
-Ford 9 inch BIG bearing journal sizes available [1.533, 1.564]
-Optional 4130 Chromoly material [31 & 35 spline, and the 1.564 Bearing Journal only]
-Stock or custom lengths
-Most popular bolt patterns
-Most spline counts and pressure angles

Application:
-Ford 9 inch [BIG bearing ONLY]

Includes:

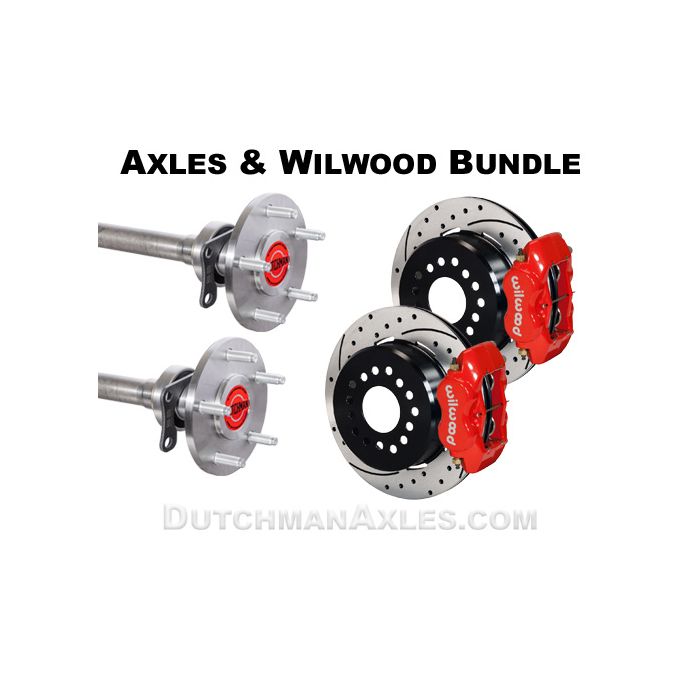

-A Pair of Ford 9 inch Alloy Axles with the hardware package (As pictured with bearings, studs, & retainer plates)
-Wilwood 11” rear disc brake kit | Part #’s 140-11389, 140-11389-D, 140-11389-DR

Warranty policy: >Click Here<
Wheel Bearing Identifier: >Click Here<

Wilwood Disc Brakes | Rear | 11 inch Pro Series with Park Brake
140-11389 | 140-11389-D | 140-11389-DR

Details:
-Rotors: 11" od x .810 wide vented rotor [includes internal drum style parking brake]
-Calipers: 4 piston dynapro low profile
-Bolt Patterns: 5 on 4 1/2", 4 3/4", & 5" [Other patterns available at extra cost]
-Ford 9 inch, Big Bearing, “New style” housing ends, 2.500 axle offset [Brake Offset]

Part Numbers & Details:
#140-11389 | Plain rotors and Black calipers
#140-11389-D | Drilled & Slotted E-Coated rotors and Black calipers
#140-11389-DR | Drilled & Slotted E-Coated rotors and Red calipers

Options:
-Black or Red calipers
-Cross drilled, slotted, and black E-coated rotors
-Another choice bolt pattern on Wilwood Rotors [rear kits only]
-Drill out an existing bolt pattern for larger than 1/2” studs

>Click Here< for kit details & wheel clearance diagram

Ordering help:
1. >Click Here< to review our custom bolt in axle “Ordering Defined” guide to familiarize yourself with the measuring process. Selections are explained & illustrations provided to aid in the ordering process.
2. Return to this page and make your selections in the drop down boxes and check boxes above.
3. Add your configured axles & Wilwood kit to the cart and proceed to the checkout process.

Shipping & Payment info:
1. Custom made parts vary in weight. In the shipping methods, select "other options", as the freight will be figured after we review and finalize the order.
2. Custom orders more often than not may end up with changes after the review & build discussion. Therefore we don’t process the credit card on our webstore. In the Payment Methods, select the “A salesman will call…” button, then proceed with the checkout process.
A Dutchman representative will review your order and call or email to confirm your information.
