Wilwood Disc Brakes | Rear | 12.19 inch Pro Series with Park Brake

Wilwood Disc Brakes | Rear | 12.19 inch Pro Series with Park Brake

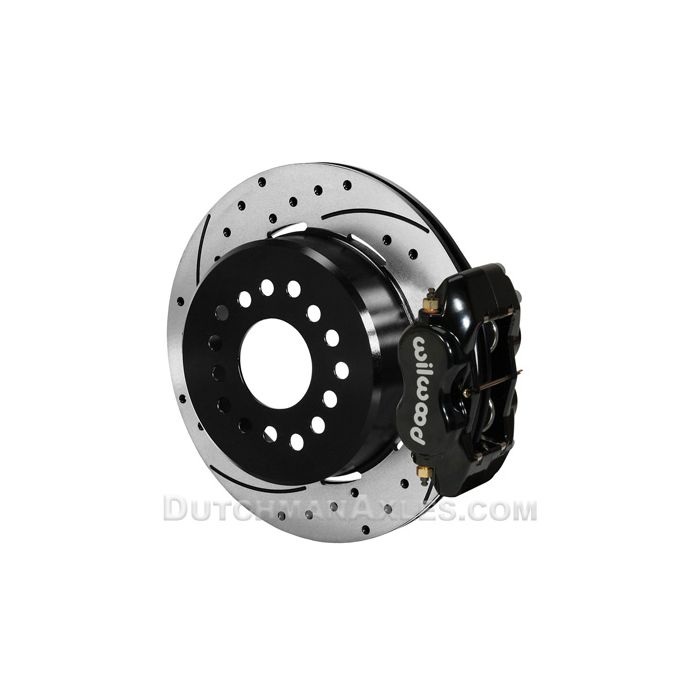

Wilwood forged dynalite FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

We also sell rear kits and any hardware listed in their catalog or web site. Visit their web site for info and part numbers (www.Wilwood.com), then call us with a part # for a competitive price quote.

Dutchman Lowest Price Guarantee; We will beat any “provable” advertised price on any Wilwood front or rear disc brake kit.

Actual product may appear different than picture.

Details: [Most kits, see page and part number for actual kit details]
-Rotors: 12.19" od x .810 wide vented rotor [includes internal drum style parking brake]
-Calipers: 4 piston forged dynalite
-Bolt Patterns: 5 on 4 1/2", 4 3/4", & 5"

Part numbers & Applications:
#140-7143, 8 and 9 inch, Small Ford, 2.660 axle offset. >Click Here< for details
#140-9282, 8 and 9 inch, Small Ford, 2.500 axle offset. >Click Here< for details
#140-13719, 8.8 Ford, Special ends, 2.500 axle offset. >Click Here< for details
#140-7139, 9 inch, Big Ford, old style ends, 2.360 axle offset. >Click Here< for details
#140-7142, 9 inch, Big Ford, old style ends, 2.360 axle offset, blank hat. >Click Here< for details
#140-7140, 9 inch, Big Ford, new style ends, 2.500 axle offset. >Click Here< for details
#140-7150, 9 inch, Big Ford, new style ends, 2.500 axle offset, blank hat. >Click Here< for details
#140-9560, 9 inch, Big Ford, new style ends, 2.500 axle offset, staggard shock. >Click Here< for details
#140-7582, 9 inch, Big Ford, new style ends, 2.360 axle offset. >Click Here< for details
#140-9791, 9 inch, Big Ford, new style ends, 2.500 axle offset, front mount calipers. >Click Here< for details
#140-13398, AMC, 71-74 , 2.600 axle offset. >Click Here< for details
#140-13511, Buick, Olds, Pontiac, 64-70 , 2.750 axle offset & Brg. OD. >Click Here< for details
#140-7146, Ford, Mustang 8.8, 5 lug, 2.500 axle offset. >Click Here< for details
#140-9228, Ford, Mustang, 05 & up, 2.660 axle offset. >Click Here< for details
#140-11348, GM, Chevy, Belair, 55-57, 2.340 axle offset. >Click Here< for details
#140-11828, GM, Chevy, Belair, Impala, 59-64 & 57-62 Corvette. >Click Here< for details
#140-7148, GM, Chevy, Camaro, Firebird, 93-97, 2.750 axle offset. >Click Here< for details
#140-10094, GM, Chevy 12 bolt Truck, C10 / C15, 2.42 axle offset. >Click Here< for details
#140-9315, GM, Chevy 12 bolt car , running c-clip axles, 2.750 axle offset, staggard shock. >Click Here< for details
#140-7141, GM, Chevy 12 bolt car, running c-clip axles, 2.750-2.810 axle offset. >Click Here< for details
#140-10918, GM, Chevy 12 bolt car , running c-clip axles, 2.810 axle offset, staggard shock. >Click Here< for details
#140-7578, GM, Chevy 12 bolt car, running the billet ends, 2.810 axle offset. >Click Here< for details
#140-10767, Mopar 8.75 & Dana 60 with Mopar ends, running the Green snap ring brg, 2.500 axle offset. >Click Here< for details
#140-7144, Mopar 8.75 & Dana 60 with Mopar ends, running the Green snap ring brg, 2.360 axle offset. >Click Here< for details
#140-7147, Olds, Pontiac, 58-64, 2.810 axle offset. >Click Here< for details
#140-12420, Strange Engineering floater kit. >Click Here< for details

Options:
-Black, Red or Polished calipers
-Cross drilled, slotted, and black E-coated rotors
-Ceramic pads
-Another choice bolt pattern on Wilwood Rotors [rear kits only]
-Drill out an existing bolt pattern for larger than 1/2” studs
