Wilwood Front and Rear Disc Brake Kit Bundle | 13 inch Rotors | 4 & 6 Piston Calipers

$3,570.00
In stock
SKU
BKB4

Price may go up based on options & upgrades.

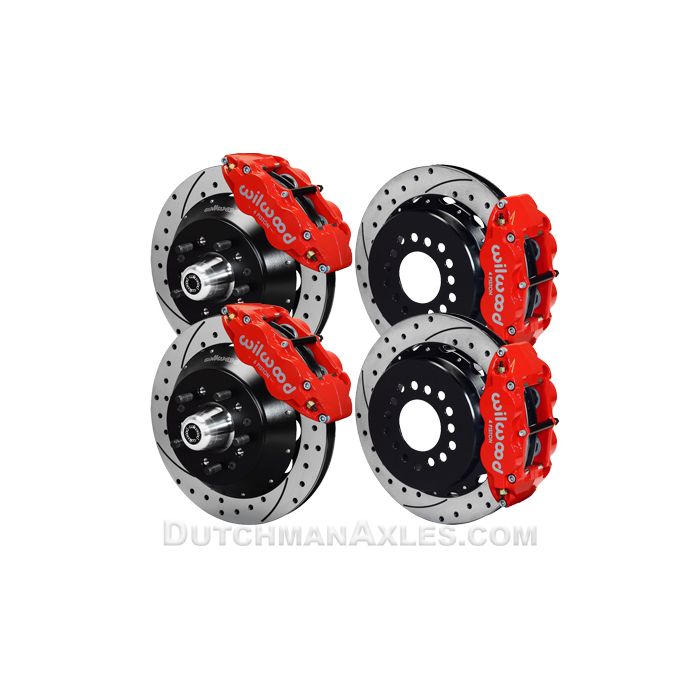

Wilwood Front and Rear Disc Brake Kit Bundle | 13 inch Rotors | 4 & 6 Piston Calipers

SAVE by purchasing the front and rear Wilwood disc brake kits together. We have bundled these kits to make ordering easier and to save you money. Simply select the vehicle for the front kit and the rear end for the rear kit, along with any other options you would like. It’s that easy!

Wilwood FNSL6R billet Forged six-piston calipers with 2 piece 13” rotors deliver the ultimate combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. Built exclusively for 17” and larger wheels, SL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application. Part numbers below are the 2 piece rotor and hat design.

Wilwood Forged Narrow Superlite 4R rear disc kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. FNSL4R four piston calipers, 13” two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines and race cars. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application.

We also sell other size kits and any hardware listed in their catalog or web site. Visit their web site for info and part numbers (www.Wilwood.com), then call us with a part # for a competitive price quote.

Dutchman lowest price guarantee; we will beat any “provable” advertised price on any Wilwood front or rear disc brake kit.

Actual product may appear different than picture. Click on kit “details” to view everything you need to know about the kit as well as the “wheel clearance” diagram [usually on the right side half way down the page-click to view it].

Price may go up based on options & upgrades.

Front kit details: [Most kits, see page and part number for actual kit details]
-Rotors: 12.88” – 13” od x 1.100 wide vented rotor
-Forged aluminum hubs
-Calipers: 6 piston forged narrow superlite 6R
-Hub Bolt Pattern(s): 5 on 4 1/2", 4 3/4"

FRONT Part numbers & Applications:
#140-10815, Chrysler, Dodge, Plymouth, 62-72 B & E Body. >Click Here< for details
#140-12637, Ford, Mustang, Cougar, Fairlane, Torino, 65-69, V8 drum spindles. >Click Here< for details
#140-10219, Ford, Mustang, Cougar, Fairlane, Torino, 68-69, disc spindles. >Click Here< for details
#140-10220, Ford, Mustang, Fairlane, Torino, Ranchero, 70-73. >Click Here< for details
#140-9801, Ford, Mustang II, Pinto, 74-78. >Click Here< for details
#140-13630, Ford, Mercury, Galaxie, LTD, Torino, Victoria, 60-68. >Click Here< for details
#140-9803, GM, Chevy, Camaro, Nova, 67-69 F-Body, Chevelle, 64-74 A-Body. >Click Here< for details
#140-10485, GM, Chevy, Camaro, disc spindle, 70-78. >Click Here< for details
#140-10492, GM, Chevy, Camaro, Caprice, Impala, 79-90. >Click Here< for details
#140-12298, GM, Chevy, G-Body, 80-87. >Click Here< for details
#140-12307, GM, Chevy, Belair, 55-57 tri5, that have Heidts 2 inch drop spindle. >Click Here< for details
#140-10238, GM, Chevy, Belair, Impala, full size, 58-70, using CPP 2” drop spindles. >Click Here< for details
#140-12460, GM, Chevy, Belair, Impala, 59-64 , Corvette, 63-64. >Click Here< for details
#140-10775, GM, Chevy C10 pickup & suburban, 63-87, using CPP 2” drop spindles. >Click Here< for details
#140-11548, Magnum Force drop spindles. >Click Here< for details
#140-13224, TCI IFS front end. >Click Here< for details
#140-9919, Wilwood pro spindle. >Click Here< for details

Rear kit details: [Most kits, see page and part number for actual kit details]
-Rotors: 12.88" – 13” od x 1.100 wide vented rotor [includes internal drum style parking brake]
-Calipers: 4 piston forged narrow superlite 4R
-Bolt Patterns: 5 on 4 1/2", 4 3/4", & 5"

REAR Part numbers & Applications:
#140-9216, 8 and 9 inch, Small Ford, 2.660 axle offset. >Click Here< for details
#140-9220, 8 and 9 inch, Small Ford, 2.500 axle offset. >Click Here< for details
#140-9217, 9 inch, Big Ford, old style ends, 2.360 axle offset. >Click Here< for details
#140-9219, 9 inch, Big Ford, new style ends, 2.500 axle offset. >Click Here< for details
#140-9218, 9 inch, Big Ford, new style ends, 2.360 axle offset. >Click Here< for details
#140-9223, Ford, Mustang 8.8, 5 lug, 2.500 axle offset. >Click Here< for details
#140-9221, Ford, Mustang, 05 & up, 2.660 axle offset. >Click Here< for details
#140-10093, GM, Chevy, GMC, Truck, C10 / C15, 2.42 axle offset. >Click Here< for details
#140-12964, GM, Chevy 12 bolt car, running c-clip axles, 2.750 axle offset. >Click Here< for details
#140-9213, GM, Chevy 12 bolt car, running c-clip axles, 2.810 axle offset. >Click Here< for details
#140-10908, GM, Chevy 12 bolt car , running c-clip axles, 2.810 axle offset, staggard shock. >Click Here< for details
#140-10909, GM, Chevy 12 bolt car, running c-clip axles, 2.810 axle offset, front mount. >Click Here< for details
#140-9215, GM, Chevy 12 bolt car, running the billet ends, 2.810 axle offset. >Click Here< for details
#140-9222, Mopar 8.75 & Dana 60 with Mopar ends, running the Green snap ring brg, 2.360 axle offset. >Click Here< for details
#140-9224, Olds, Pontiac, 58-64, 2.810 axle offset. >Click Here< for details
#140-11877, Speedway Engineering Modlite floater kit. >Click Here< for details
#140-12435, Strange Engineering floater kit. >Click Here< for details

Options:

-Red or Polished calipers
-Cross drilled, slotted, and black E-coated rotors
-Ceramic pads
-Another bolt pattern choice on Wilwood Rotors [rear kits only]
