Ford 9 inch | Replacement Rear End | 64-72 GM A-Body | Chevelle

Ford 9 inch | Replacement Rear End | 64-72 GM A-Body | Chevelle Type

Our Ford 9 inch, stronger than stock, replacement rear ends are built to match the vehicles original axle width and suspension (narrowed widths are subject to suspension locations). Every Dutchman made housing is custom built to order, and uses our aftermarket brackets to enable it to bolt to the suspension mounting points of your vehicle. Our 31 or 35 spline axles are built with your choice of wheel bolt pattern and wheel stud combinations, either stock or custom.
Add a brake kit and third member and you have a complete, brand new 9 inch Ford, performance rear end.

Custom made to order in the USA.
Actual product may appear different than the pics.
Price may go up based on option or hardware choices.

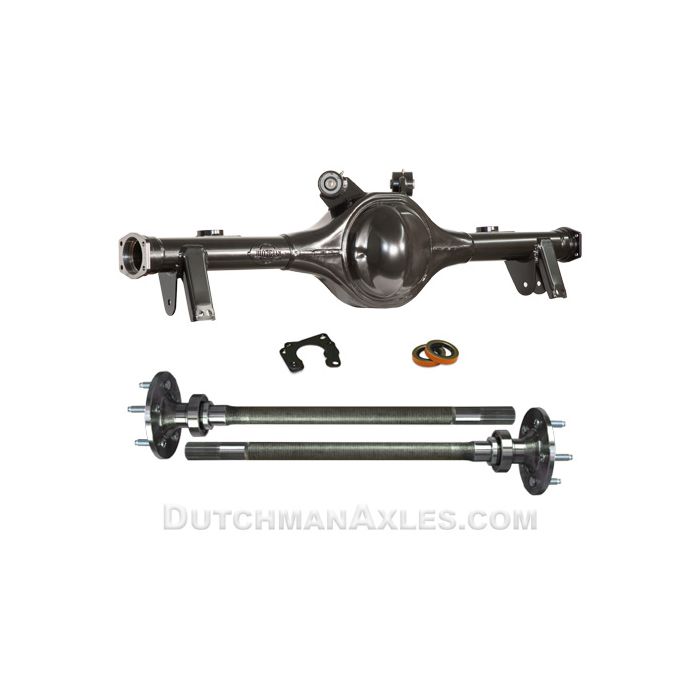

Package Includes:
-Our HD or XHD Ford 9 inch housing with jig welded brackets & billet housing ends installed [built to your specified width, subject to the brackets].
-Pr. Street & Track new 9 inch Hi performance axles [completely assembled with bearings, studs, & retainer plates].
-Housing stud, nut, bolt, & vent kit.

64 – 72 A-Body Specs:
-Width: 64-67 = 60” [Wheel to Wheel]
-Width: 68-72 = 61” [Wheel to Wheel]
-Brackets: Coil spring pads, shock mounts, lower and upper control arm mounts
-Note: The "Upper Control Arm Mounts" feature the HD performance “Johnny Joints”
-Note: The "Coil Spring Pads" are the 68-72 style with the built in spring pilot
-Note: The "Shock Mounts" are mounted inboard for extra wheel and or brake clearance
-5 x 4 ¾” wheel pattern using 7/16” NF wheel studs

Options Include:
-HD “Street & Track” Notch or Round cover housing, or optional XHD Dfab housing
-1541 or Chromoly 4130 alloy axle materials
-Ball, DMI set 20 taper roller with inner seal or our new Super Set 20 taper wheel bearing for serious track and offroad builds. >Click Here< for more info on wheel bearing choices
-Install a drain fitting
-Install a back brace [May not work with some bracket combinations]
-Powder coat finish. >Click Here< to view color options

NOTE: This Housing and Axle package does NOT include the third member or brakes!
-Third Member options >Click Here<
-Brake Kit options >Click Here<

Shipping & Payment info:
1. Custom made parts vary in weight. In the shipping methods, select "other options", as the freight will be figured after we review and finalize the order.
2. Custom orders more often than not may end up with changes after the review & build discussion. Therefore we don’t process the credit card on our webstore. In the Payment Methods, select the “A salesman will call…” button, then proceed with the checkout process.
