Axles and ARB Locker | Bundle | Jeep JL Wrangler & JT Gladiator | Big Bearing

$1,500.00
In stock
SKU
SR-B-1

The price may change based on custom selections

2018 and Up | Jeep Wrangler | 35 spline Axles and ARB Air Locker | Bundle
JL WRANGLER: Rubicon | High Altitude [Wide Track]
JT GLADIATOR: Sport | Overland [Narrow Track]
JT GLADIATOR: MAX Tow | High Altitude | Mojave | Rubicon [Wide Track]

Upgrade your Jeep's performance with our custom-made, high-quality axle shafts. Our reputation for excellence speaks for itself, and now we have a growing selection of Jeep applications available too - featuring larger splines and bundled with an ARB Air Locker for added value. Don't miss out on our exclusive "Bundle" offer - a pair of fully assembled 2018 and up Jeep JL Wrangler or JT Gladiator rear axle shafts in a sturdy 35 spline, plus a reliable 35 spline ARB Air Locker. Take your Jeep to the next level - get your "Bundle" now!

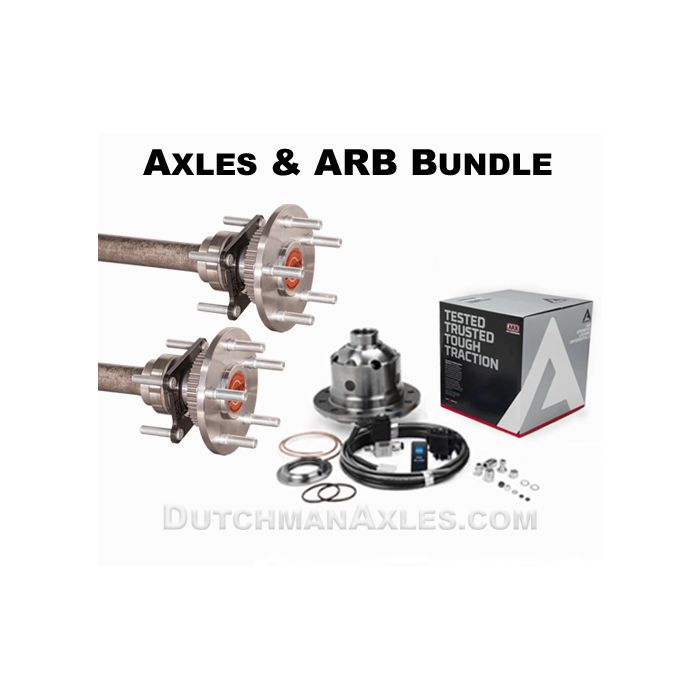

The “Bundle” includes:
-A Pair of 2018 and up Jeep JL Wrangler Rubicon or High Altitude | JT Gladiator Max Tow High Altitude Mojave or Rubicon rear axle shafts , fully assembled, in 35 spline
-A 35 spline ARB Air Locker

Axles Made in the USA (right here in Meridian Idaho)
Actual product may appear different than the pics.

Part # & Application:
-Our stock replacement part number: SR#710 [Narrow Track] and SR#692 [Wide Track]
-2018, 2019, 2020, 2021, 2022, 2023 | Jeep | JL Wrangler | JT Gladiator
-Rear end make/model/style: M220

Dimensions:
-Length, LH driver side: Narrow Track=32 1/4" and Wide Track=33 1/16”
-Length, RH passenger side: Narrow Track=32 1/4" and Wide Track=33 1/16”
-Spline count: 35 [Upgraded form the stock 32 spline]
-Bolt pattern: 5 on 5
-Stud size: 14mm x 1.5
-Brakes: Disc
-Drum pilot: 2.830 [1/4” tall, stock height & custom pilots carry a $ surcharge]
-Wheel Bearing: Taper roller – Set 80 [3.150 diameter]
-Retainer Plates: Yes
-ABS tone rings: Yes
-Assembled: Yes [Same as pics]

Axle Replacement policy:
-10 Years [Against breakage ONLY, not twisting]

Wheel Bearing Identifier: >Click Here<
NOTE: This application uses the larger 3.150 diameter Set 80 Wheel bearing, NOT the smaller 2.875 diameter Set 10 – like the Non-Rubicon JL WRANGLER: Sport and Sahara uses.

Shipping & Payment info:
1. In the Shipping Methods, select "other options", as the freight will be figured and added after we review and finalize the order. This is the reason we don’t process the credit card on our webstore.
2. In the Payment Methods, select the “A salesman will call…” button, then proceed with the checkout process.

A Dutchman representative will review your order and call or email to confirm your information.
