9 inch Ford Independent Bundle | Housing | Stubs | Axles | 930 CV Joints

$3,050.00
In stock
SKU
IRS68

Price may go up based on option choices

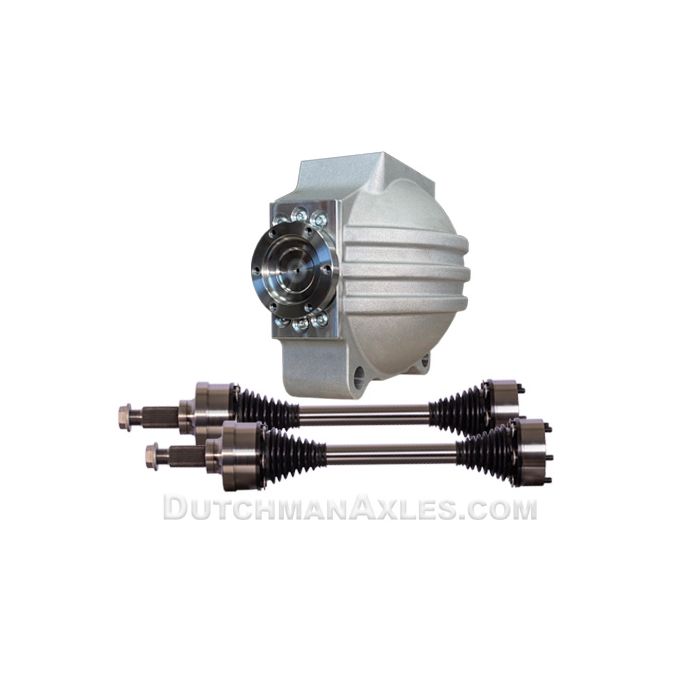

9 inch Ford Independent Housing | Stubs | Axles | 30 Spline 930 CV Joints

Building your own CV style independent rear end? You asked, and we listened! We’ve made ordering a Dutchman independent rear suspension for your project even easier, with packages that include everything you’ll need; no need to hunt around for individual “IRS” components anymore. Our hub to hub IRS assembly is a 30 year evolution that has resulted in an independent axle that we can confidently stand behind in the most extreme applications. Whether you’re building a cruiser, hi-tech street rod, muscle car, track car, or off road vehicle, a Dutchman independent rear assembly will be custom made to spec without breaking the bank! Produced in the USA, a Dutchman built Ford 9 inch third member gear set, coupled with our new independent CV center housings and chromoly stub axles, will handle exactly the performance level you need.

Custom made in the USA.
Pics are fairly accurate, but the actual product may look different.

Features:
-We engineered the housing with extra thick cross sections for added strength.
-Without sacrificing strength, the independent housing has a lightweight design [only 20 lbs.].
-Our new, fourth generation castings are poured and heat-treated in the United States, at a foundry that utilizes modern state-of-the-art equipment and “old-school know how”. The combination of engineering and the best production methods available has resulted in one of the strongest aluminum independent housings in the aftermarket automotive industry.
-The inner and outer stub shafts are designed for the heavy duty 30 spline -- NOT 28 spline...930 constant velocity CV joint and are CNC machined using forged, double heat-treated 4340 chromoly material.
-For added strength and durability, the stub axles are supported using a Timken taper roller bearing (instead of the typical single row ball bearing our competitors use).
-Inner stub flange face to face measures 14 3/4” [one of the narrowest in the industry].
-33 spline chromoly 4340 outer stub axles.
-Custom made CV shafts, made to order, for any track width [production time is 2 weeks or less].

Includes:
-CNC machined aluminum housing.
-Pr. Chromoly 4340 31 or 35 spline inner stub axles.
-Pr. Chromoly 4340 CV half shafts, fully assembled with EMPI joints, boots, & Stage 8 locking bolts [greased and ready to run].
-Pr. Chromoly 4340 33 spline outer stub axles.

Available options:
-C7 Unit bearings [wheel hubs, compatible with C5-C7 uprights].
-Black CeraKote finished stubs and shafts [superior rust preventative and dirt repellant].
-Hy Tuf CV half shafts.
-RCV 30 spline 930 CV joints with 300m body, cage, and race [The best in the industry].
-Billet aluminum or steel pinion mounting bracket.
-Billet aluminum or steel top mounting bracket.
-New, bolt on oil cooler with or without a pump for extreme applications.
->Click Here< for the Ford 9 inch 3rd member gear sets and more info.
