Flanged Floater Axle | 1541 Alloy | 1 piece | Single

$190.00
In stock
SKU
AX35

Price may go up based on application, material choice, and whether a single or pair.

Flanged Floater | Full Float | Axle Shaft | Single

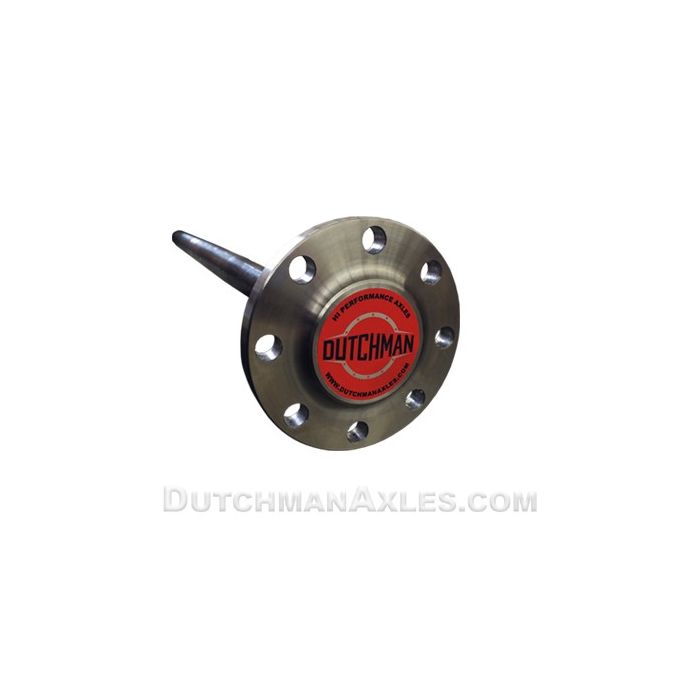

Dutchman’s Custom and stock replacement 1541 1 piece flanged floater axles are forged from the same premium alloys as our flanged Street & Track axle shafts. Our flanged floater alloy axles are custom made to order, regardless if your application is stock replacement or a custom length. We can machine most popular OEM and aftermarket drive flange bolt patterns.

WARNING: If you’re upgrading from a smaller spline to a larger one, make sure your spindle clearance is the following.
For 35 spline x 1.500 diameter | Spindle =1.600 inside diameter minimum
For GM 14 Bolt 30 spline x 1.530 diameter | Spindle =1.625 inside diameter minimum

Priced as a single.
Actual product may appear different than the pic
Made in the USA (right here in Meridian Idaho)

Features:
-Forged alloy 1541 material
-Stock or custom lengths
-Most popular bolt patterns & spline counts

Application(s):
-Dana 60, 70, 80
-14 bolt Corporate
-9" Ford
-Sterling
-Hybrid (D60 or Ford 9 inch center with 14 bolt or aftermarket spindles)

Material Option:
-1541 (Lengths up to 40" | 35-37 spline | Bolt patterns up to 4.330” bolt circles)

Warranty policy:
>Click Here<

Ordering help:
1. >Click here< to review our custom flanged floater axle “Ordering Defined” guide to familiarize yourself with the measuring process. Selections are explained & illustrations provided to aid in the ordering process.
2. Return to this page and make your selections in the drop down boxes and check boxes above.
4. Add your configured axles to the cart and proceed to the checkout process.

Shipping & Payment info:
1. Custom made parts vary in weight. In the shipping methods, select "other options", as the freight will be figured after we review and finalize the order.
2. Custom orders more often than not may end up with changes after the review & build discussion. Therefore we don’t process the credit card on our webstore. In the Payment Methods, select the “A salesman will call…” button, then proceed with the checkout process.

A Dutchman representative will review your order and call to confirm your information.

This listing is for custom configurable 1541 alloy 1 piece flanged floater axles only.
>Click Here< to review available Stock Replacement listings [scroll to the bottom of the page].

NOTE: This listing is for a single axle shaft only! If ordering a pair, go to the pair listing rather than list qty 2 when adding to the cart.
>Click Here< for the pair link.
