9 inch Ford | 3rd Member Case | Strange Nodular Iron | Pro Street & Track Series
Price may go up based on selections.
9 inch Ford | 3rd Member Case | Strange Nodular Iron | Pro Street & Track Series

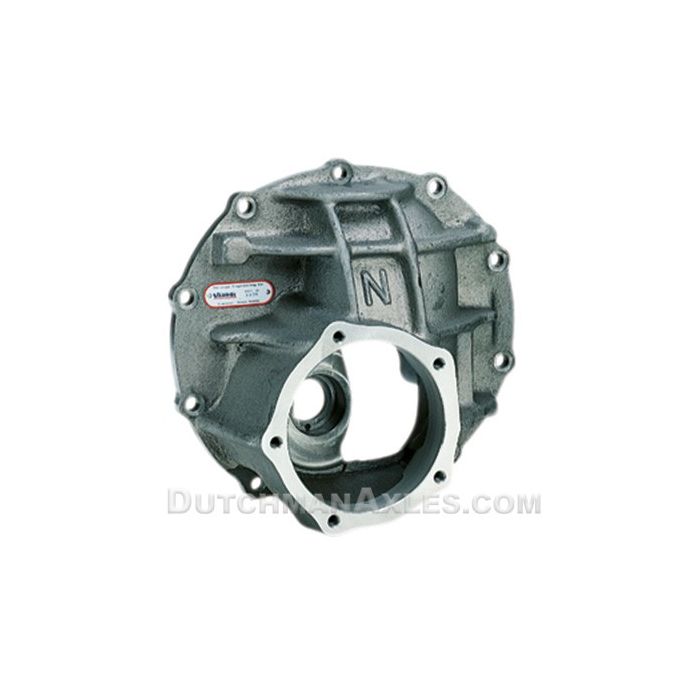

Has your stock 9” case or aftermarket “big cap” case with 5/8” cap bolts failed? The Strange 9” Ford nodular iron case is the solution- hopefully before the failure costs you a lot of money. Strange nodular cases are machined from D-4512 nodular iron which is 8% stronger than the nodular which is found in OEM cases. The 8% material strength is only a small portion of the total strength increase a Strange case offers. The Pro Series case is available in two bearing sizes; the 3.062 size suitable for all 28 & 31 spline differential combinations as well as the 3.250 size for 35-spline locker and full spool applications. Recommended for high horsepower applications (Over 600 hp).
For additional strength the case features:
-Chrome-moly bearing caps retained by socket head cap screws that exceed aircraft grade 8 specifications.
-Steel adjuster nuts.
-The pinion pilot bearing has been reinforced with superior D-4512 nodular and additional material.
-All bolt holes are deep tapped and cast with additional material surrounding the OD of the holes.
-Bearing bores and reinforcing ribs are all cast with additional material in critical areas.
-Ribs were carefully designed to further enhance rigidity.
-Spot faced stud holes prevent lubricant leaks and damaged mounting surfaces.
Carrier Bearing Sizes:
-3.062 (28 & 31 spline differentials), Part number N-1905
-3.250 (35 spline differential/spools), Part number N-1906
