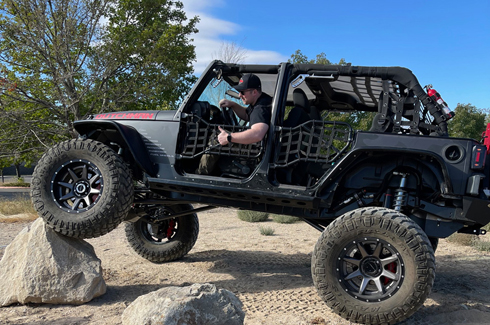

From Boring Stocker...To Shocker!

...

>Click on an Image below< to see our YouTube video series featuring the build of this custom Jeep from beginning to end.

Episode 1
Episode 2
Episode 3
Episode 4
Episode 5
Episode 6



BUILD DETAILS -- Read on for most of the breakdown.

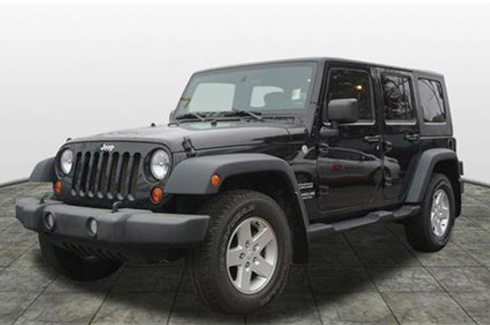

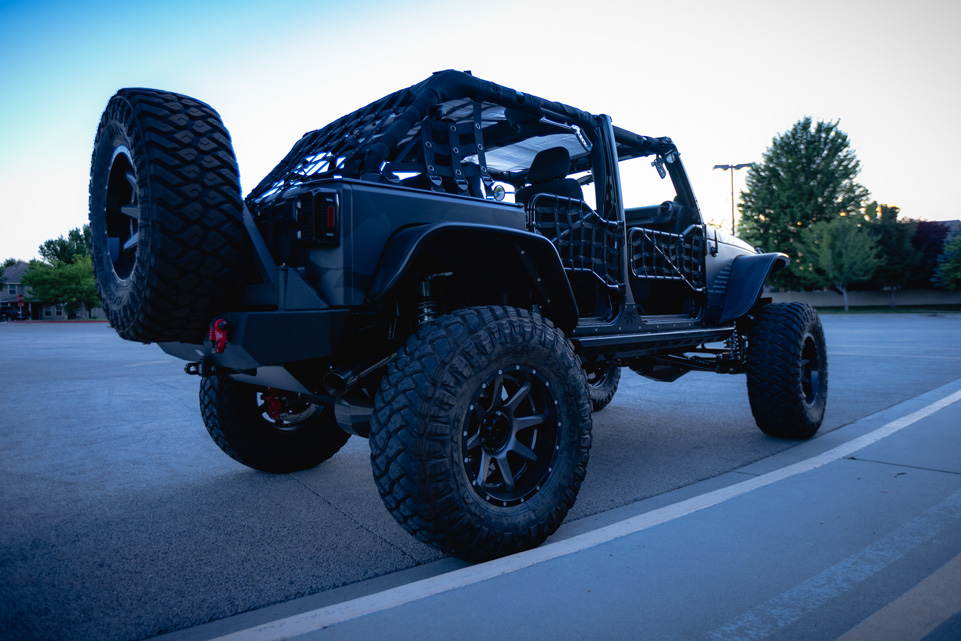

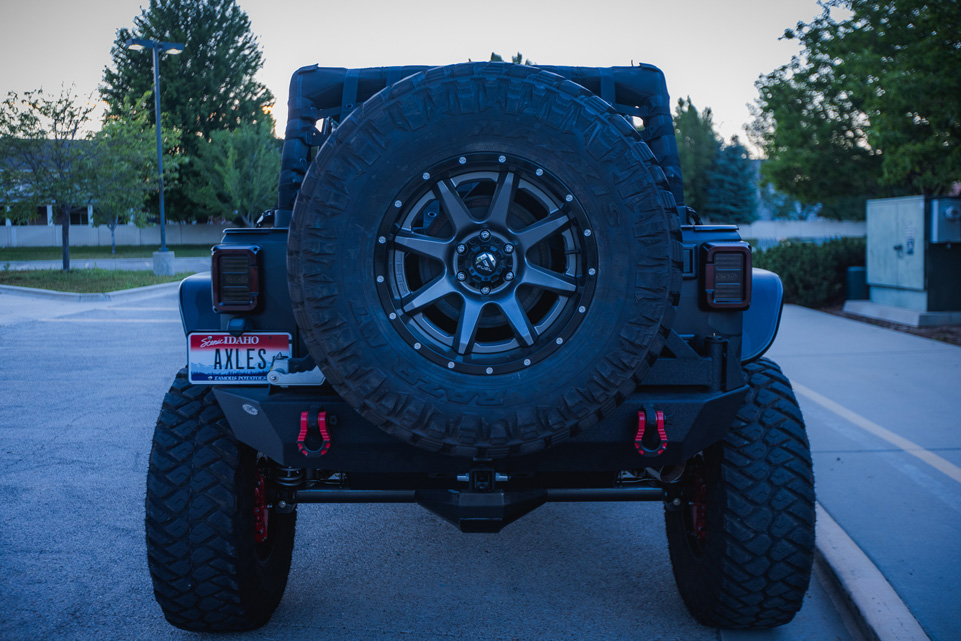

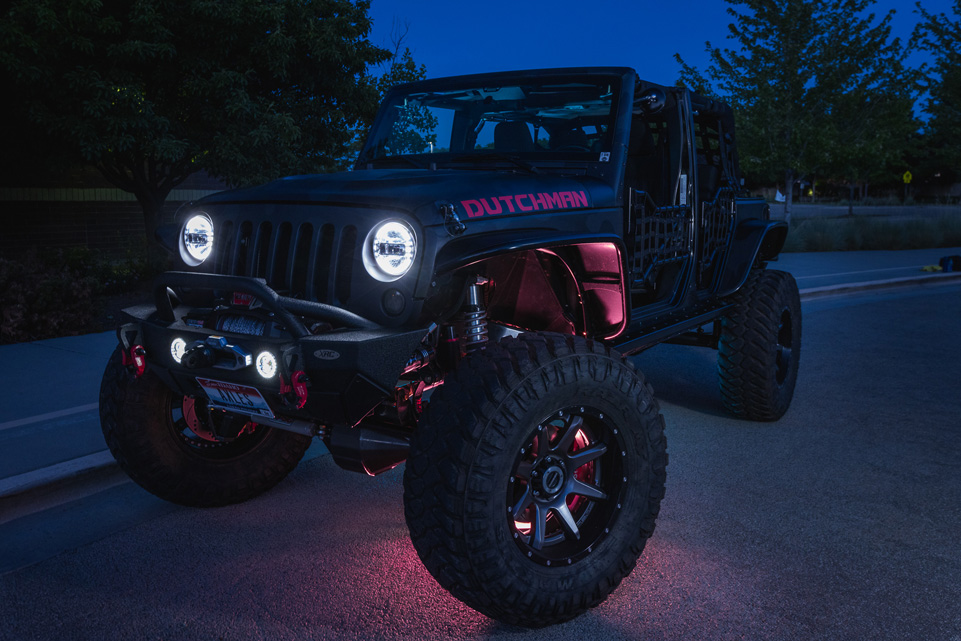

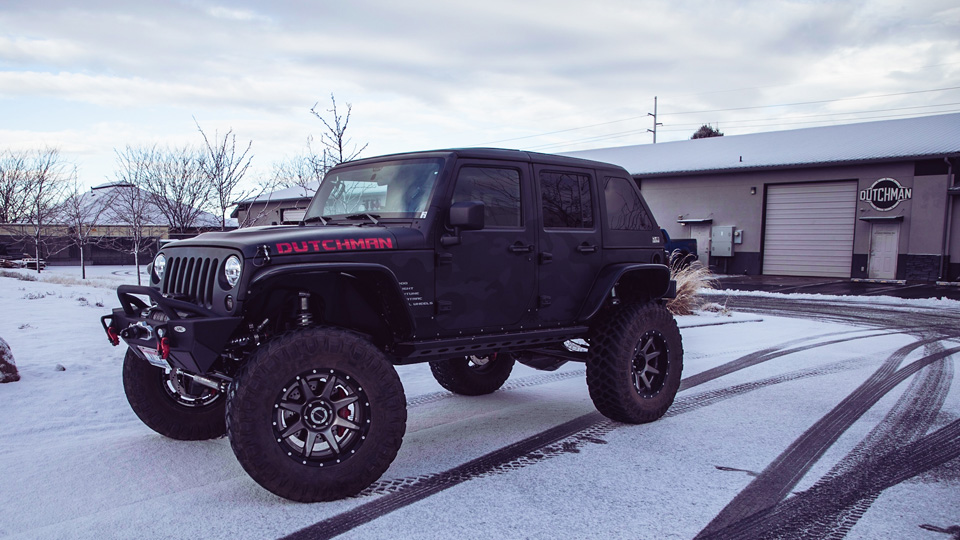

2011 Jeep Wrangler:

DRIVETRAIN:

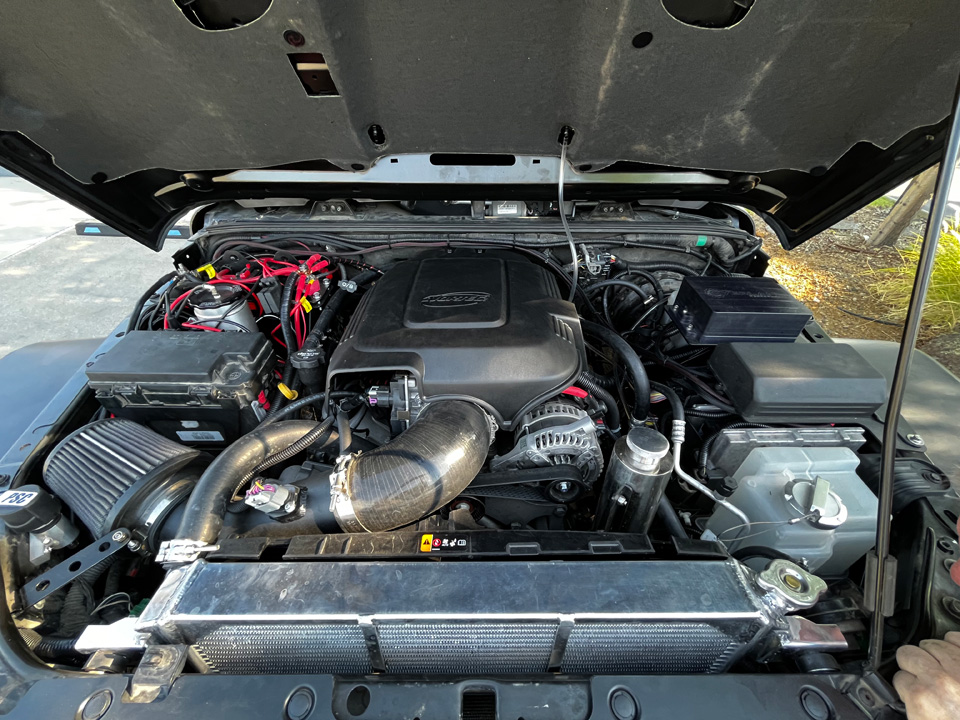

-V8 swap using a new crate Truck/SUV LS 6.2 & 6 speed 6L80 tranny [Emissions legal Conversion kit, motor, transmission]

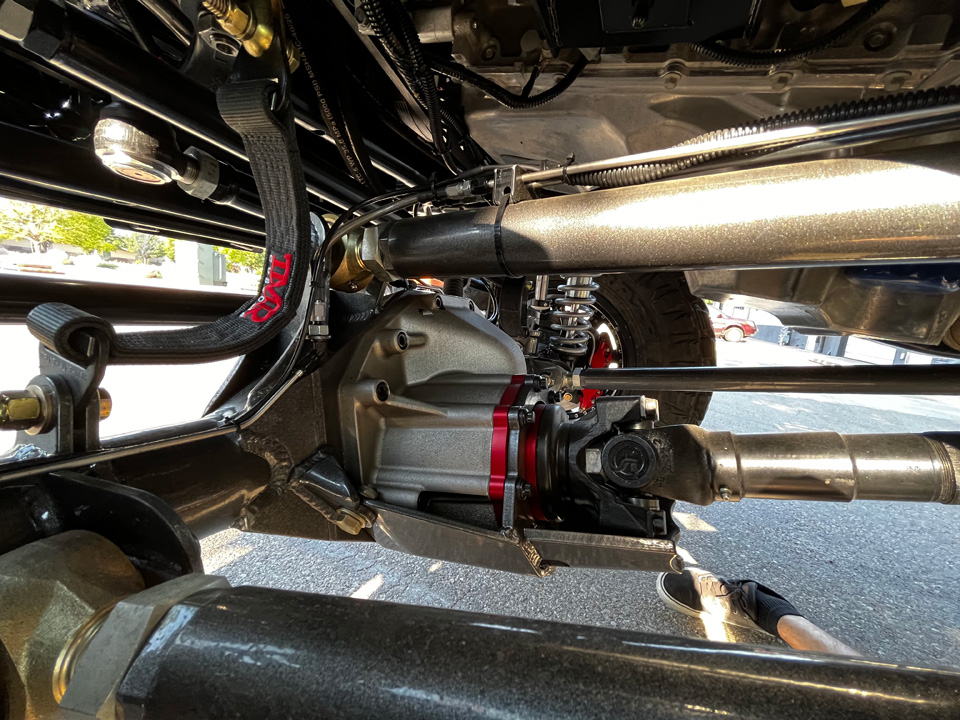

FRONT Axle Assembly:
-Dutchman built GM 14 bolt -- drop style like a Ford 9 inch, but much stronger utilizing a 10.5" ring and pinion.
-XHD Fabricated style housing with a HD skid plate [that protects all the way up to the U-Joint]
-Extra thick wall 3 1/2" diameter DOM tube
-Spidertrax Ultimate knuckles
-Dutchman’s new Forged Billet style Dana 60 35 spline axle shafts
-ARB 35 spline air locker

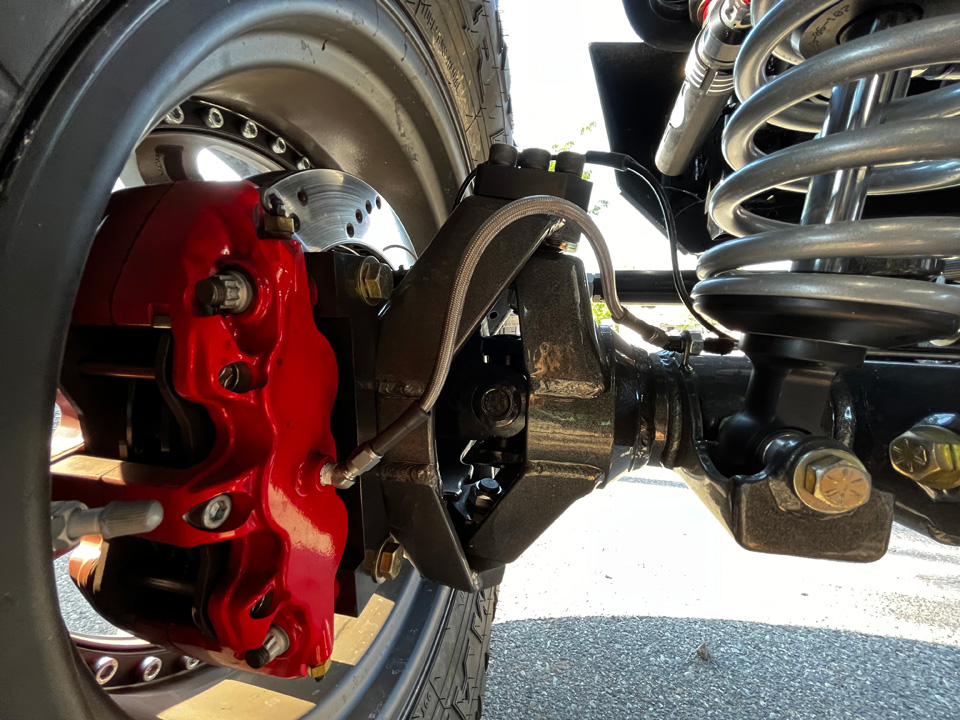

-Wilwood BIG 14” disc brakes with AERO6 6 piston calipers

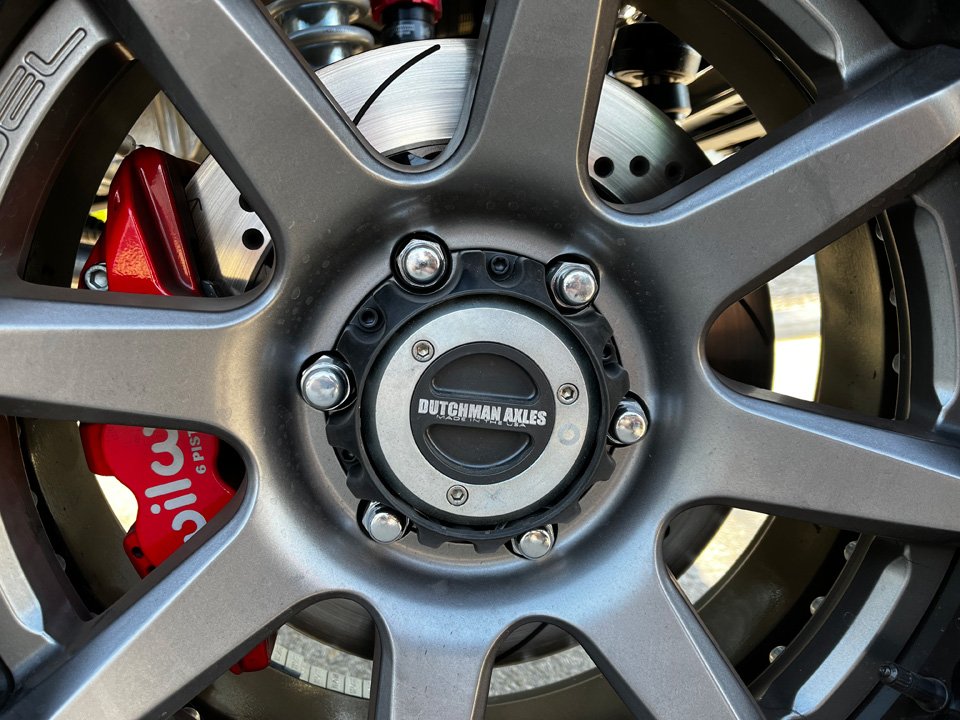

-Dynatrac Locking hubs

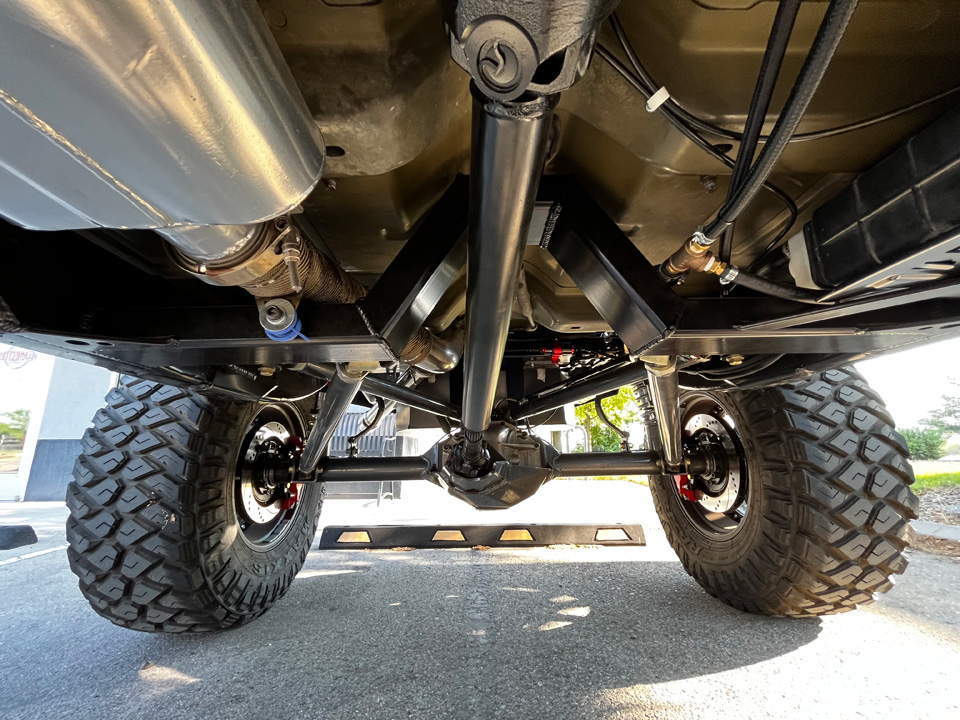

REAR Axle assembly:
-Dutchman built GM 14 bolt Floater rear end [Also drop out style]
-XHD Fabricated style housing with a HD skid plate [that protects all the way up to the U-Joint]
-Extra thick wall 3 1/2" diameter DOM tube
-Dutchman Hy Tuf 35 spline axle shafts
-Currie F-350/450 1 ton unit bearings
-ARB 35 spline air locker
-Wilwood BIG 14” disc brakes with AERO4 4 piston calipers

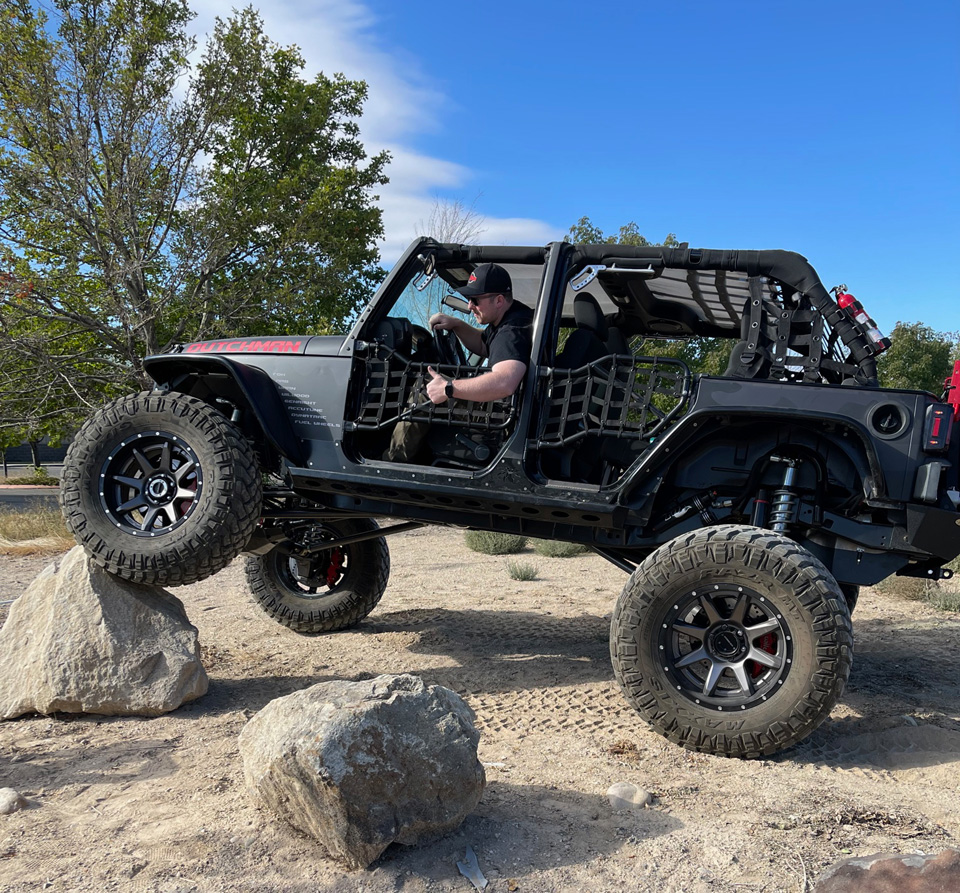

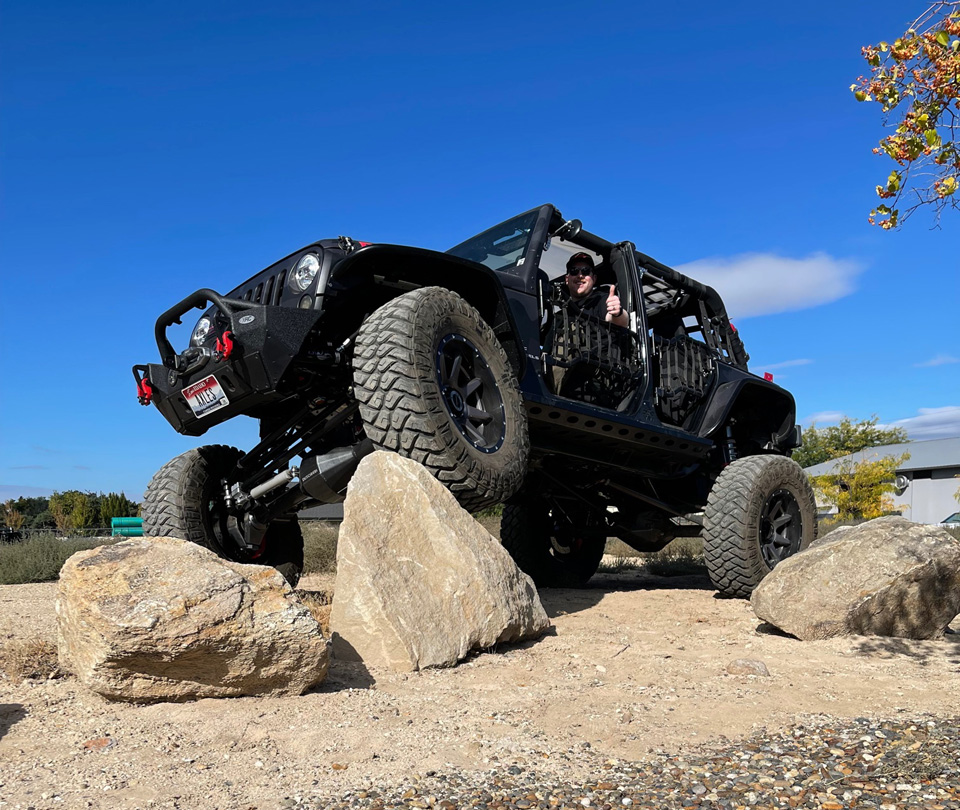

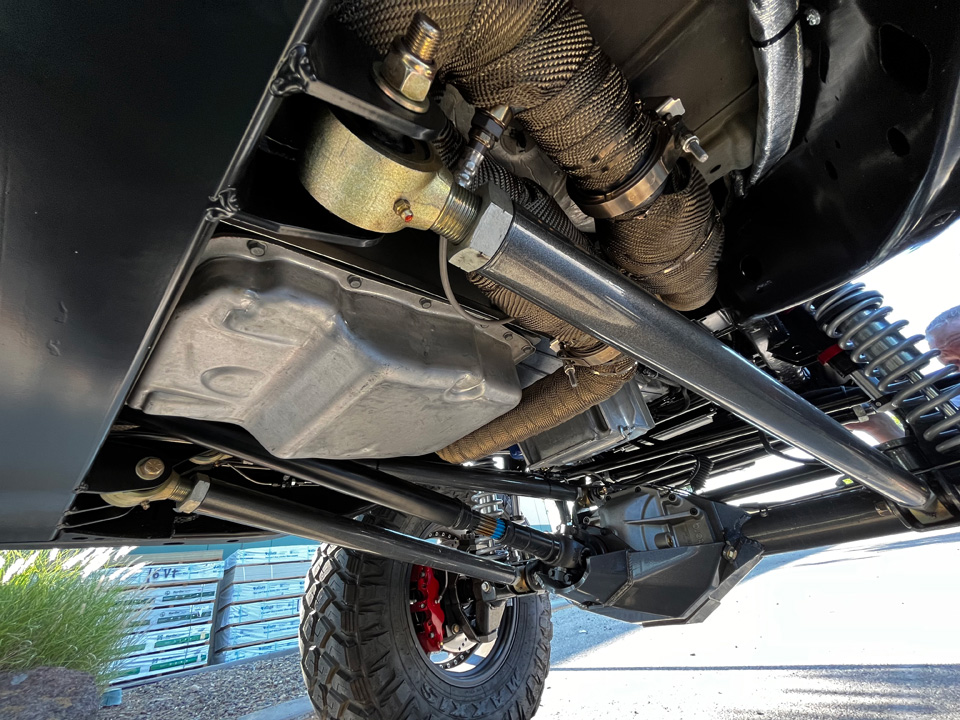

SUSPENSION & STEERING:

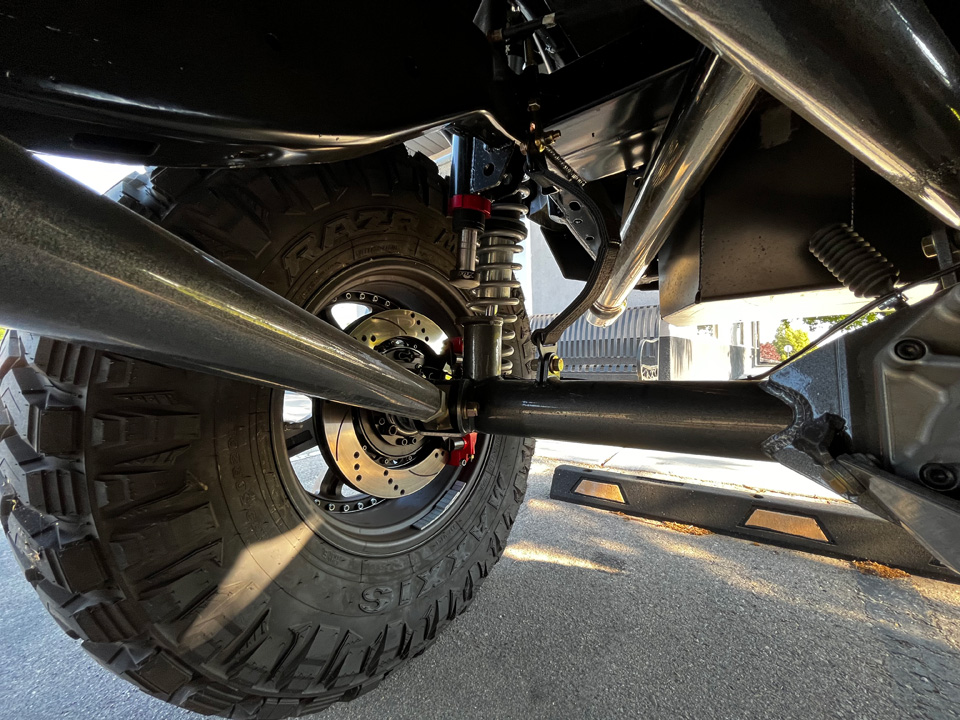

-Custom front 3 link & Rear 4 link kit
-Dutchman built control arms using rebuildable Jonny Joints
-Genright crossmembers

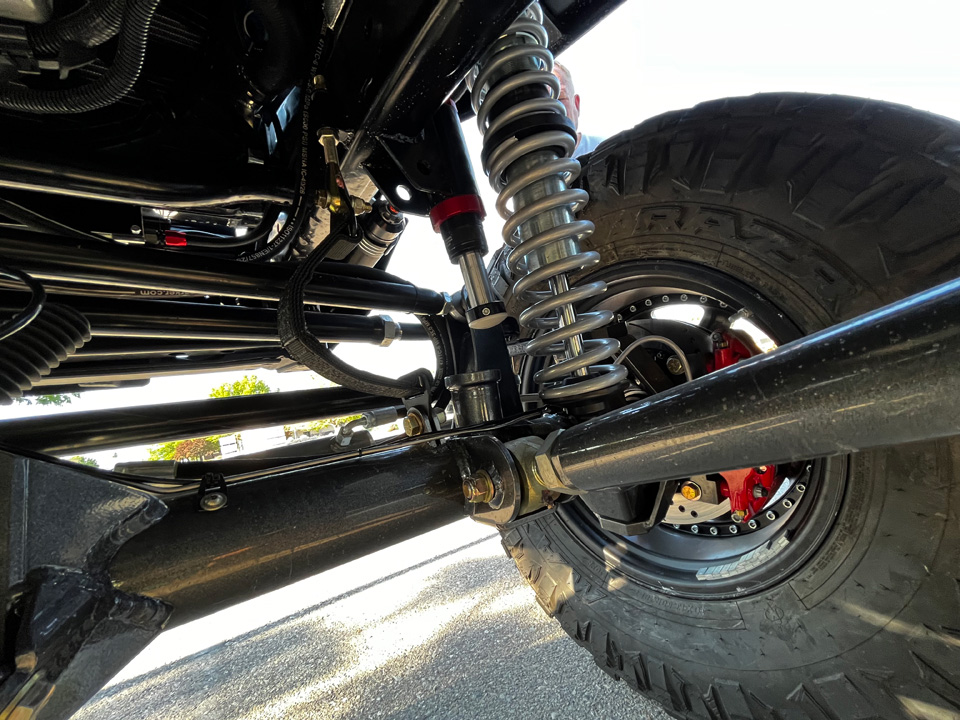

-Coil Overs: Fox Factory Race 2.5 DSC on all 4 corners [12” travel shocks]
-Springs & Shock Tuning advice: Accutune Offroad
-PSC cylinder assist kit
-Ported and rebuilt steering box

CUSTOM XHD Driveshafts & 1350 Series Forged Yoke Conversion Kit:
-Adams with thick wall DOM tubing

WHEELS & TIRES:

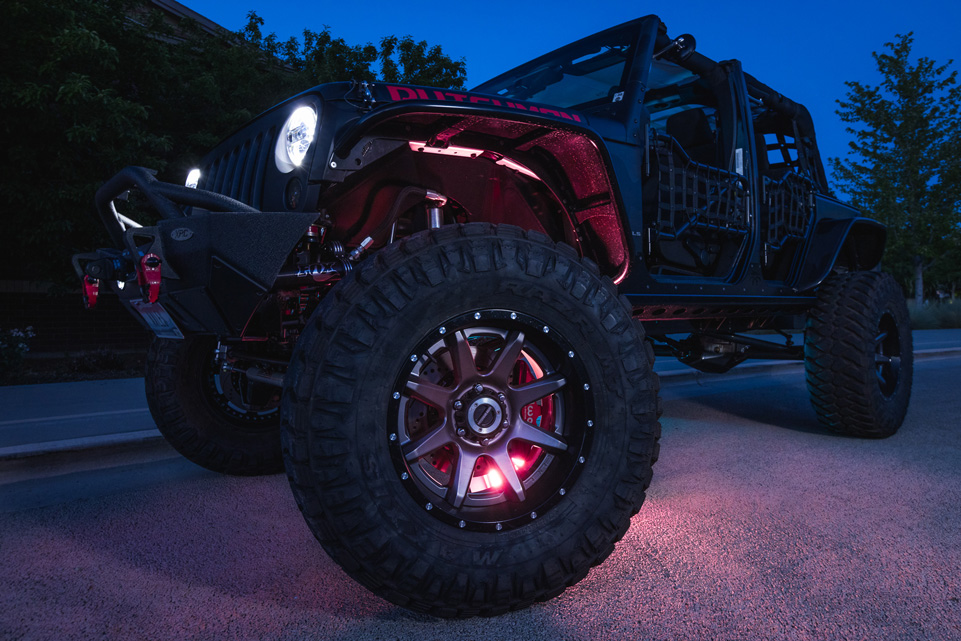

-Wheels: Fuel Offroad, 2 piece, Rampage model D238
-Tires: Maxxis Razr MT 40's

EXTERIOR:
-Custom Black Camo vehicle wrap

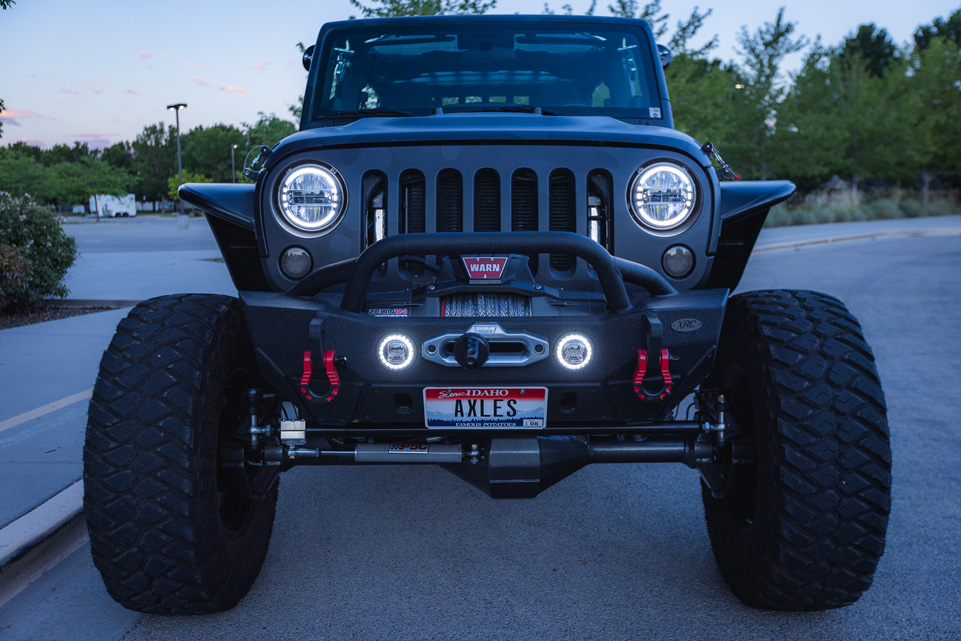

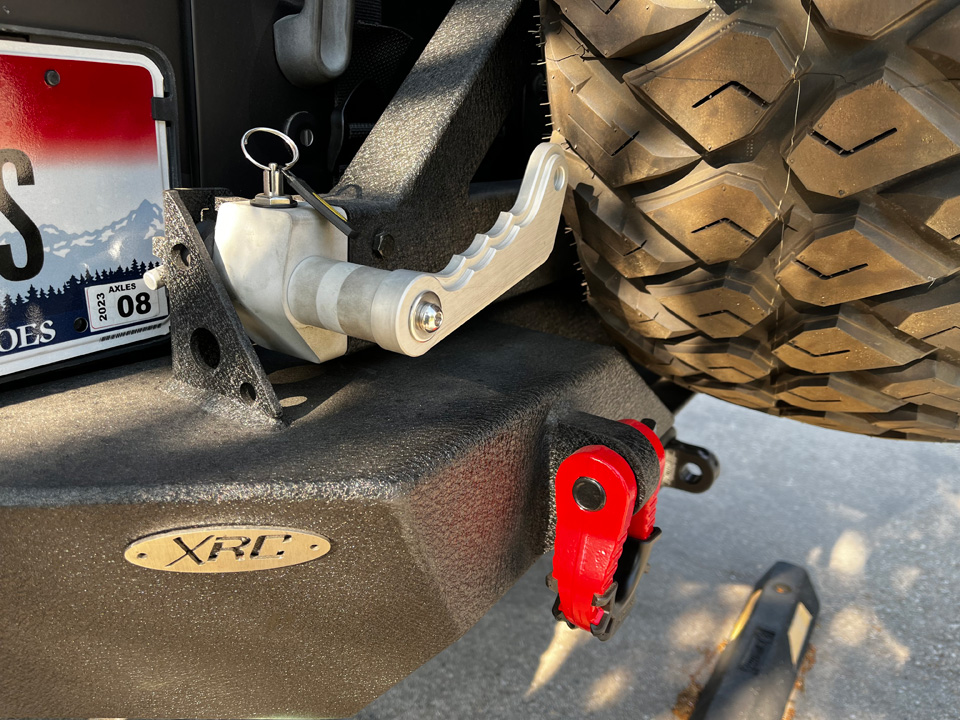

-Smitty Built fabricated bumpers
-DV8 slant back insulated top

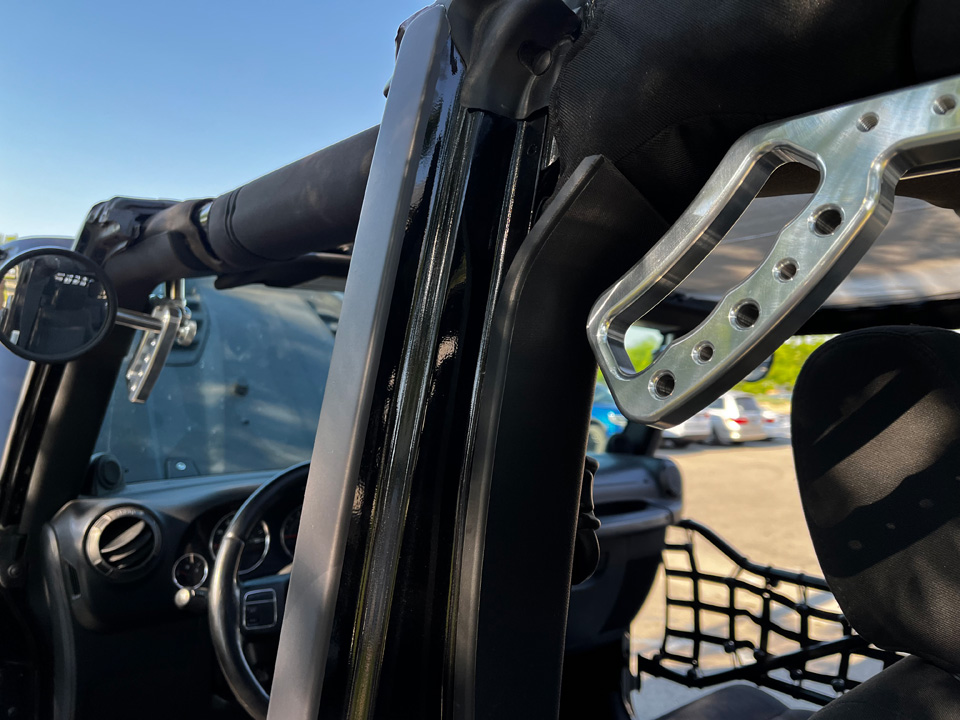

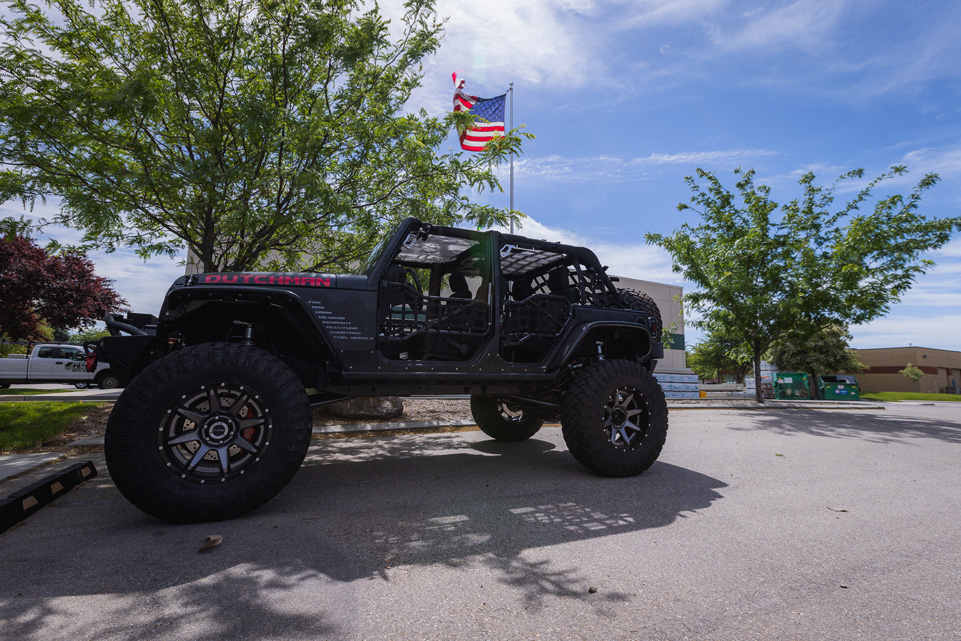

-Steinjager tube doors & nets

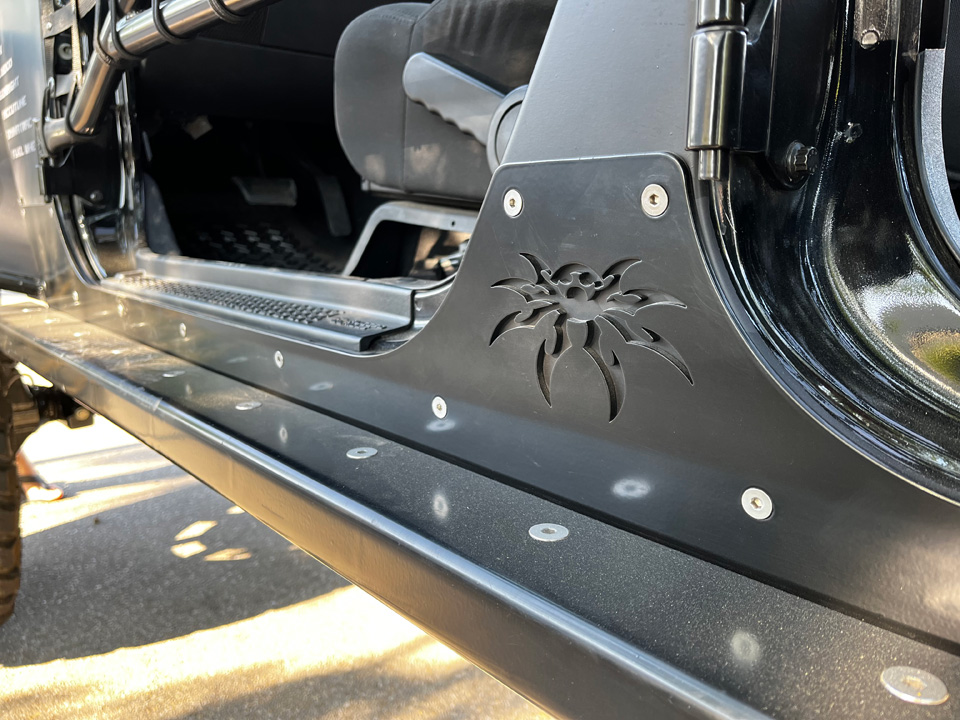

-Poison Spyder Aluminum fenders and steel rock sliders

INTERIOR:
-Console mounted air locker control switch panel
-Overhead mounted accessory light switch panel
-Later model "Tapshift" gear selector conversion [Allows manual shifting if desired]

Air Compressor:
-ARB

RECOVERY:

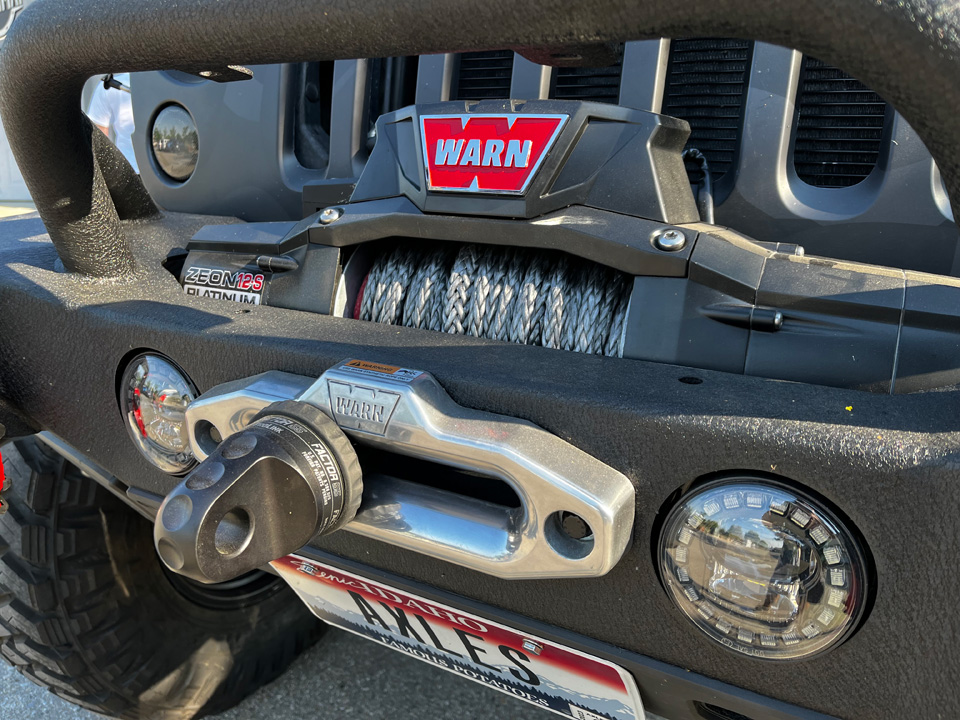

-Winch - Warn Zeon 12-s platinum

UNDERCARRIAGE:

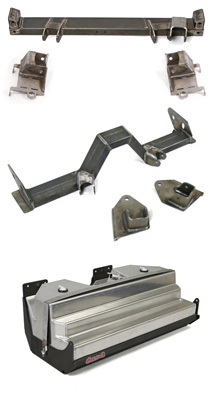

-Genright custom 25 gallon gas tank and protective skid plate/box

CUSTOM Stainless exhaust system:
-Holley high flow cats
-Flowmaster Delta 50 muffler [2 1/2" dual in, 3” single out]

CUSTOM Stainless brake lines:

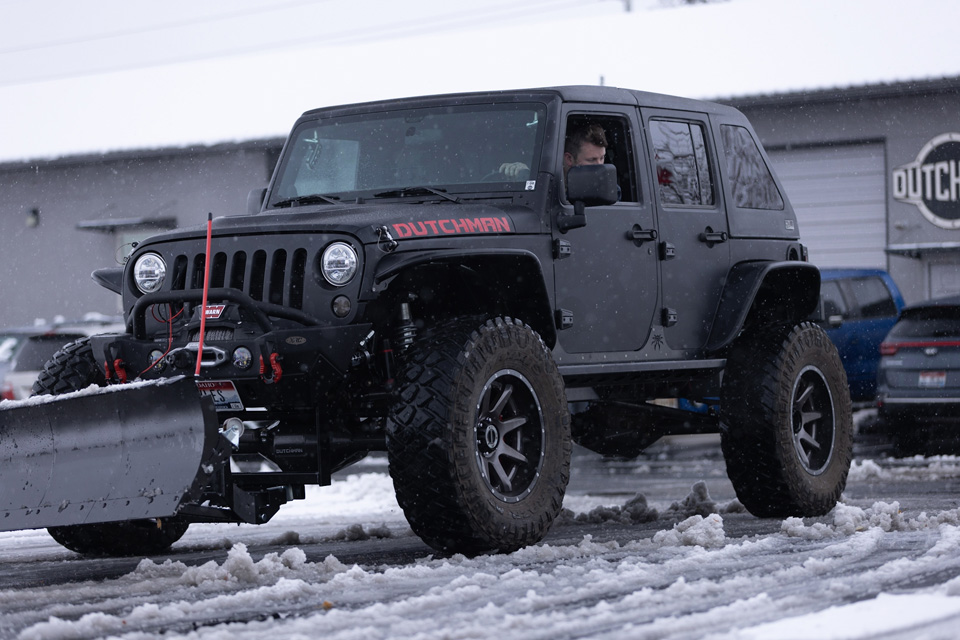

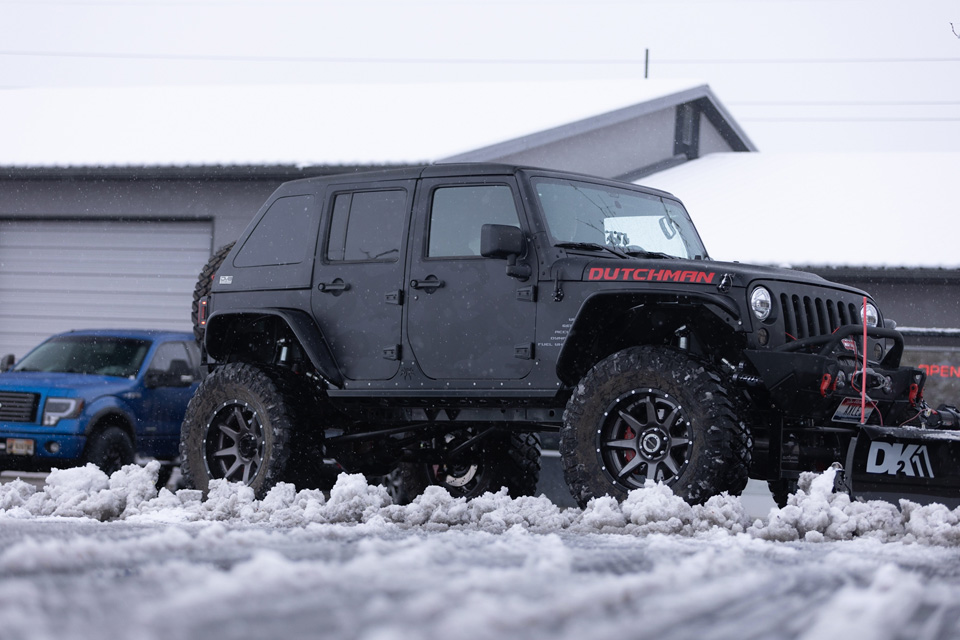

SNOW PLOW, Remote Controller, and Winch:
-Easy on/off, and adjustable
